QED-95 - PDP-11/70 processor upgrade

QUICKWARE

The QED-95 is the ultimate PDP-11/70 processor upgrade set at a price tag of approximately $15,000.00 from QED (Quickware Engineering and Design).

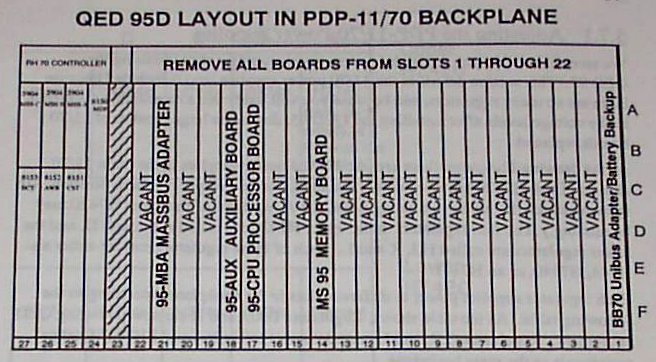

The QED-95 is a D|I|G|I|T|A|L UNIBUS-compatible processor that is fully compatible with all PDP-11 UNIBUS hardware and software. The QED-95 addresses 4 Mb of memory and implements the complete PDP-11 architecture, excluding the Commercial Instruction Set (CIS) available only as an option for the 11/23, 11/24 and 11/44 systems. The QED-95 system is designed to replace the complete PDP-11/70 processor and memory. See the board layout diagram, slots 2 thru 22 of the 11/70 processor are empty!

You can say that the QED-95 is the ultimate upgrade for the PDP-11/70.

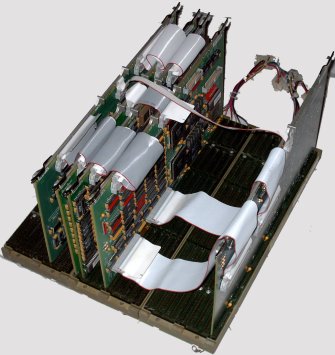

QED-95 in backplane

The QED-95 upgrade set consists of the following items :

QED-95-CPU Board
QED-MS95 Memory Board
QED-95-AUX Auxiliary Board
QED-95-MBA Massbus Adapter Board
QED-BB-70 Board
QED-95 CPU PDP-11 Processor Upgrade Manual
Board interconnect ribbon cables
Console connection cable

The QED-95 is an example of the final evolutionary state of the PDP-11.
The QED-95 is a very rare find!
Mentec developped modules with the J11 processor and then proceeded with the development of "PDP-11 processors" in custom-made ASICs.
